Lever Action Rifle Upgrades

Cowboys vs Aliens Lever Action

Date:

Grab a lever action rifle and something primal stirs in your mind. Leverguns evoke the pioneer spirit. The rugged individualist that trumped all others in an era long past.

Leverguns tend to get pigeon-holed these days as “old timers” and are relegated to a niche that’s overshadowed by the more modern AR. Leverguns are seen as cowboy guns, or grandpa’s rocker-upper front porch rifle. And you know what, they can be either of those things.

I set out to design a rifle that would break through the ceiling of what people think leverguns are and what they can do. I wanted to design a rifle that can take down coyotes or brown bears, as well as be used for a slew of short to midrange tactical roles. It’s a Cowboy’s rifle, and an Alien’s rifle all rolled into one.

It’s called the Cowboys vs. Aliens Lever Action, and yes, it’s silly. It could have been even sillier, but I wanted to walk that fine line between silly and purposeful. I think we hit that line dead on. If this article opens your mind up to the potential of leverguns, then we’ve accomplished our goal.

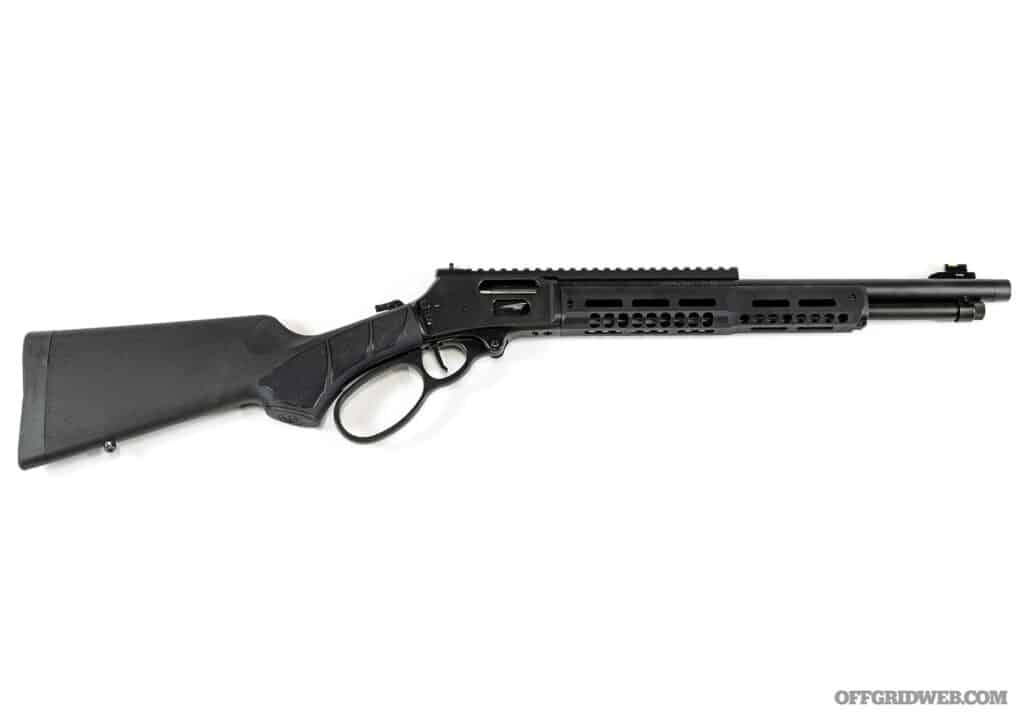

Smith & Wesson1854
Original Smith & Wesson1854 Stealth Hunter without modifications.

Modernizing the Smith & Wesson 1854

Out of the box the Smith & Wesson 1854 Stealth Hunter has an eight-round tube, a 16.3-inch threaded barrel and a stainless action, all covered in a black finish.

I chose .44 Magnum because it can deal with anything you might encounter in the backcountry from brown bear to moose to that bipedal threat. The trajectory is similar to throwing a shot put, but for a gun intended to be effective at close to mid-range, .44 Magnum’s power compensates.

I chose the Stealth Hunter because it comes out of the box without a glint of silver or gold to ruin my light discipline. I’ll make some modifications to mine, mostly in the vein of dropping weight and adding accessories, but I wanted to start with the best foundation.

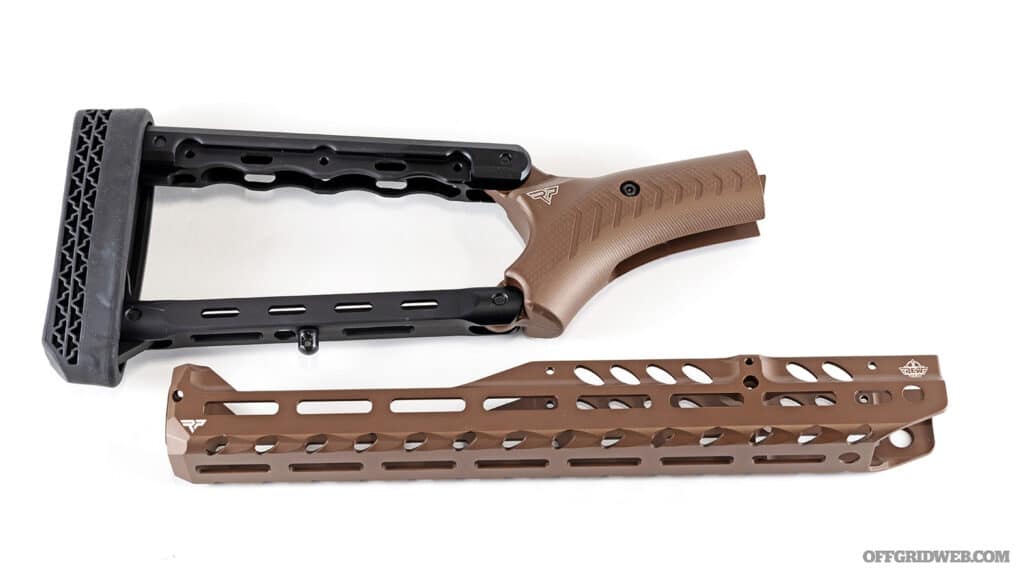

Ranger Point Precision PewView (Root Beer)
Ranger Point Precision PewView (Root Beer)

Cutting Weight with Ranger Point

The PewView stock in Root Beer colorway (developed with competition shooter Nick Johnson) includes a 13.25-inch M-LOK handguard, an adjustable aluminum buttstock, a cheek riser and an M-LOK accessory panel. I appreciate that the handguard still allowed for use of the rear peep sight. And I was able to dial in length of pull and comb height to fit my shooting style (I shoot mostly offhand these days with the trendy “thumb over” method instead of the stock’s default settings).

I also installed a takedown screw and loading gate from Ranger Point Precision. Ranger Point Precision provided most of the upgrades to this gun and I appreciate each one.

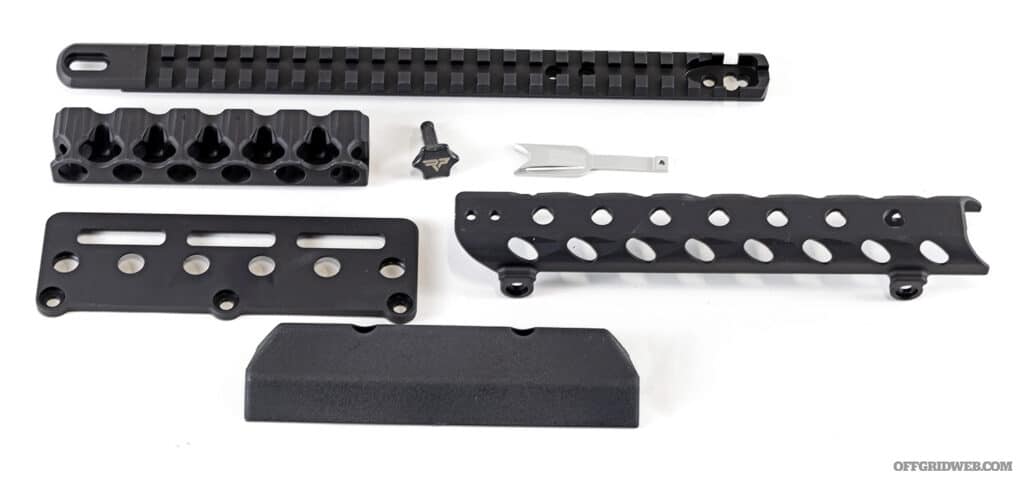

tool-less takedown screw, M-LOK six-round .44 Mag, M-LOK buttstock panel, Flyweight Loading Gate.
Tool-less takedown screw, M-LOK six-round .44 Mag, M-LOK buttstock panel, Flyweight Loading Gate.

Ranger Point’s tool-less takedown screw makes it a 30-second process to take the lever apart for cleaning.

Ranger Point’s Flyweight Loading Gate makes loading the lever significantly easier than using the factory gate. Anyone who has stuffed a lever tube against the factory spring will appreciate this one.

And Ranger Point’s six-round quiver attaches to the M-LOK panel, keeping six additional .44 rounds right next to your support hand. And thanks to O-ring retention, they’re not going anywhere.

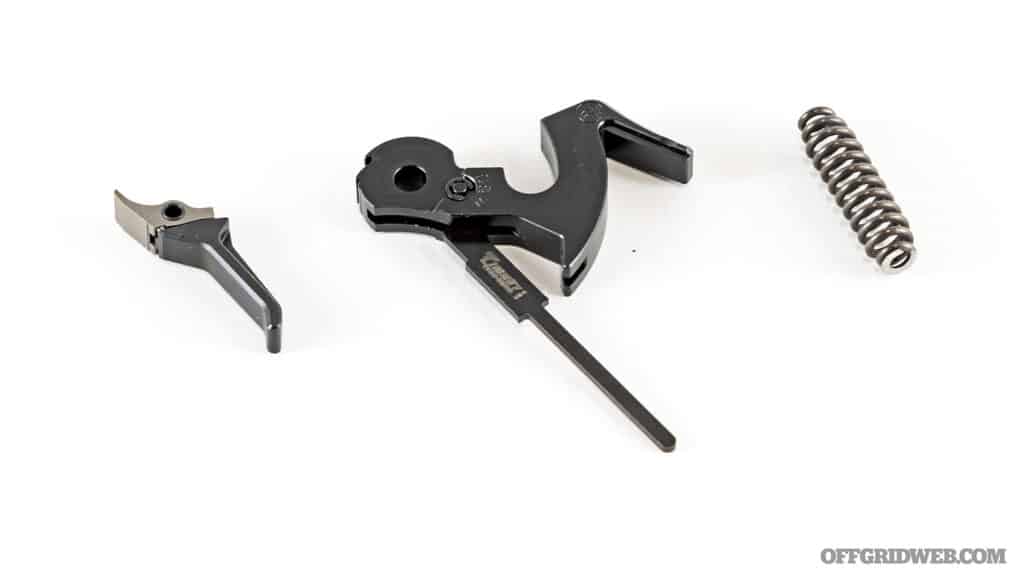

Timney lever action trigger.
Timney lever action trigger.

Trigger and Muzzle

Out of the box, the trigger pulls cleanly in the 3- to 5-pound range, fine for a working gun and not much better than fine. But if you’re after refinement, there are some excellent aftermarket triggers available.

I installed a Timney single-stage trigger built for the 1854, and the factory trigger turned into a glass-smooth 2.5- to 3-pound trigger job with a nice, flat shoe. It’s improved my trigger control and finger placement, and it’s made me a more effective shooter.

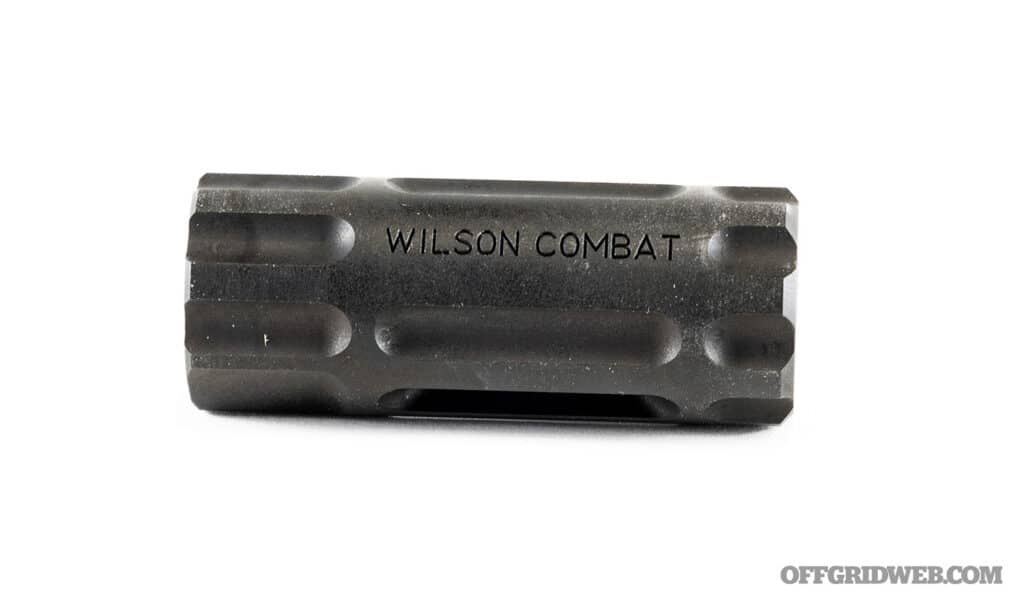

Wilson Combat Q-Comp .458, 11/16x24
Wilson Combat Q-Comp .458, 11/16×24

The Stealth Hunter’s thread pattern is 11/16 by 24 and I screwed on a Wilson Combat Q-Comp which is designated as a .458 brake, but the thread pattern is the same. It cut muzzle rise nearly to nothing. A must for this bucking cartridge.

If I lived in a sane state I would’ve screwed on a can instead, but alas common sense isn’t universal yet.

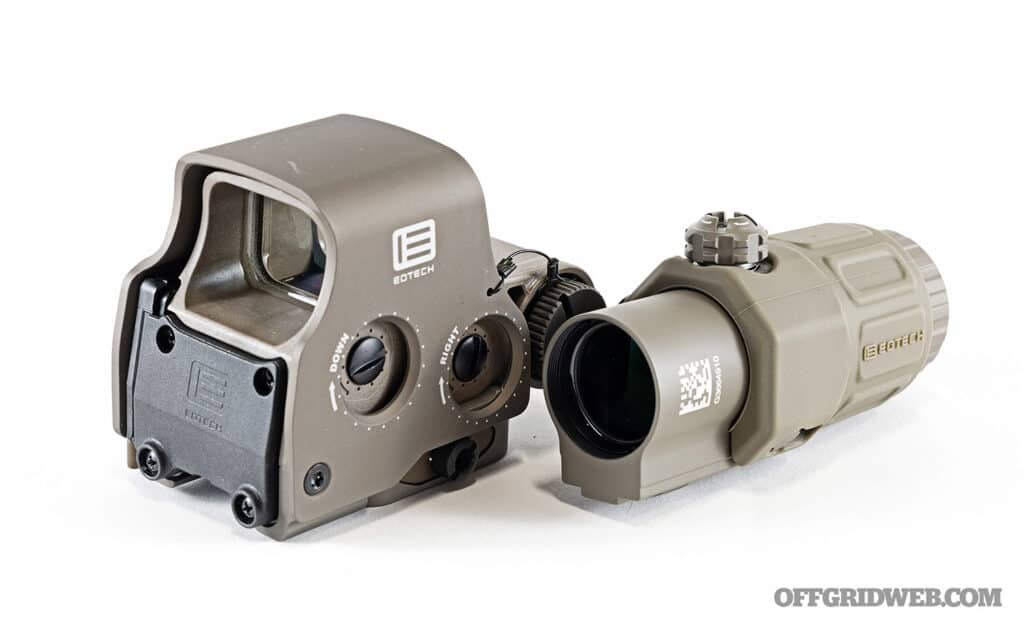

EOTech HWS EXPS3 (tan) with G33 magnifier on STS mount.
EOTech HWS EXPS3 (tan) with G33 magnifier on STS mount.

Glass, Magnifier, and Light

A thousand lumens should be more than enough to blind somebody’s eyes or clear out an interior space. It’s bolted to my rifle so it can come with me to the range, but I’ve rigged it with a Streamlight ProTac HL-X. I like that this light has the TEN-TAP programmable switch, so I can have the features work the way I want them to, not the way Streamlight thinks I want them to work.

Glow-dot irons aren’t my favorite sights for this rifle, but they come stock and I’ll admit they get the job done. For a rifle that’s meant to have a tactical flavor to it, though, it’s hard for me to go wrong with a quality holographic sight. I’ve elected to use an EOTech EXPS3 with the one-dot speed ring reticle. Aside from the fact that it’s rugged, reliable, and virtually indestructible, I love that I can still utilize the speed advantage of shooting with both eyes open. As a bonus, it’s night vision compatible, so if I ever find myself rustling cattle behind a pair of green image intensifiers, I’m all set.

On a switch-to-side magnifier mount behind the holographic sight sits an EOTech G33 magnifier. Flip it out of the way and I still have a speedy both-eyes-open optic for shooting, flip it into line and I get a 3x magnification to use for target identification and impact confirmation (nothing’s easier than spotting a .44 hole, but this makes it even easier).

All of this gear is quick detach, so in a pinch I can revert back to the factory-provided iron sights in a couple seconds flat if I need to ditch the glass.

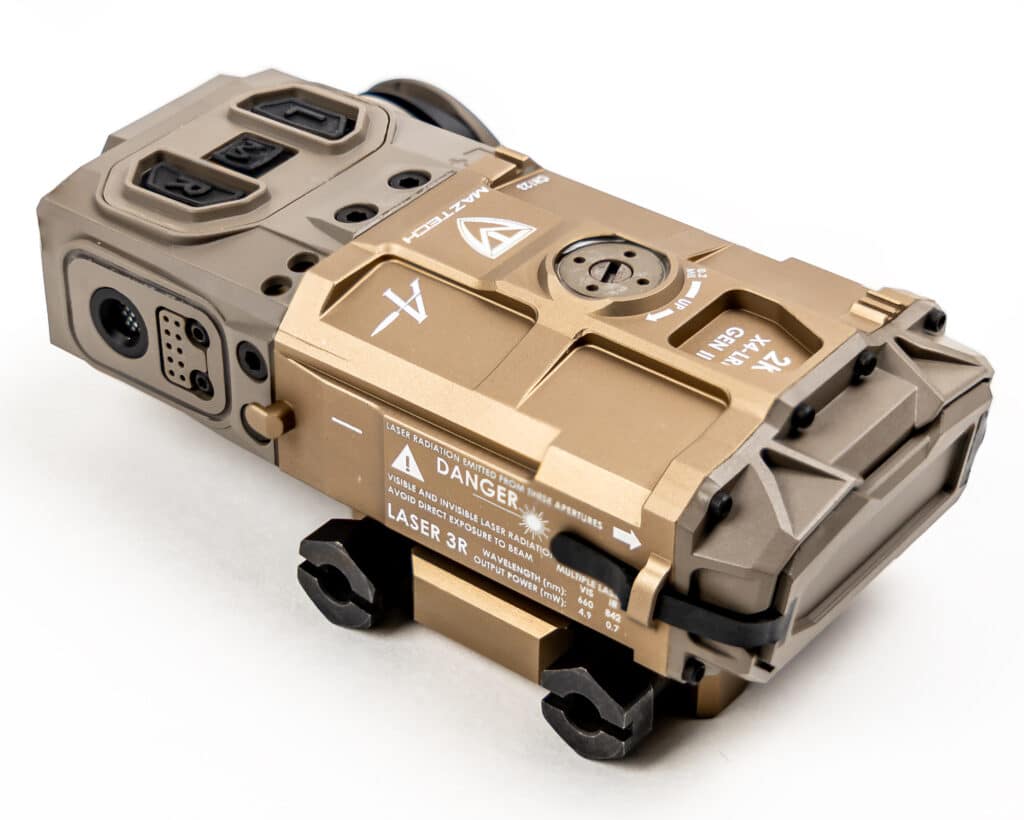

Maztech Industries X4-LRF-15K
Maztech Industries X4-LRF-15K

The Alien in the Room

The item that truly takes this rifle into “vs. Aliens” territory is the Maztech Industries X4-LRF-15K.

This is a weapon mounted laser rangefinder that has an Applied Ballistics ballistics solver as well as its own suite of environmental sensors built in. When you range a target it calculates a firing solution which it then displays on a large OLED display. The firing solution accounts for atmospheric conditions measured by its own suite of sensors. The X4-LRF-15K has both a visible red laser as well as an IR laser for true day and night capability. I’m not going to lie this device costs more than the rest of the rifle combined, but I know of no other product that takes a lever action rifle and makes it feel like it belongs in the far future.

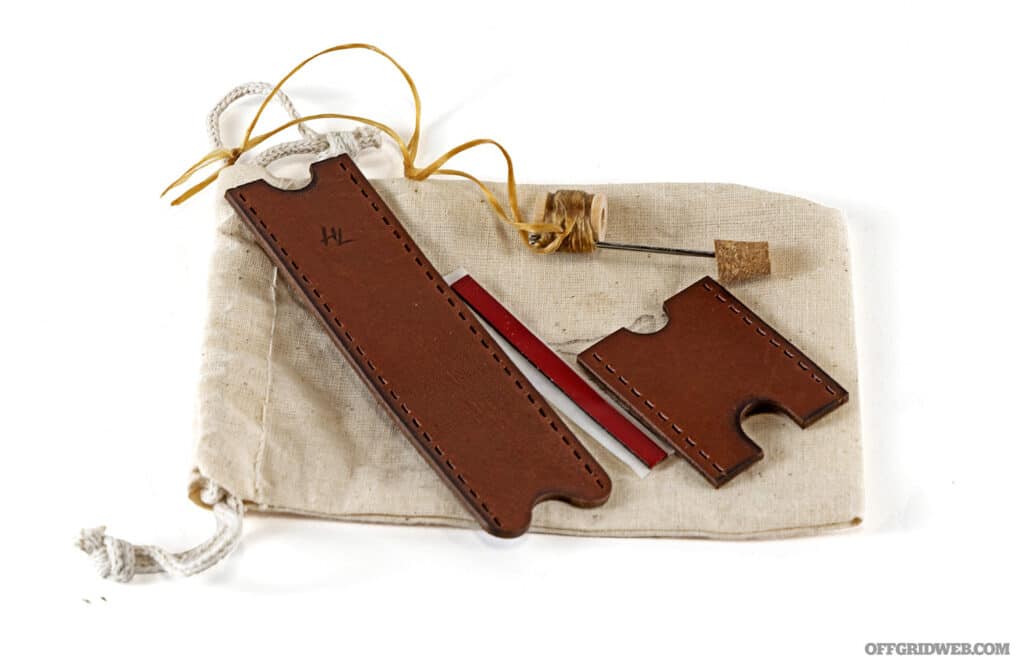

Hellhound Leather Co. wrap kit (brown).
Hellhound Leather Co. wrap kit (brown).

A Classic Touch

A few hours in the shop and a YouTube video was all I needed for most of the swaps, but threading sinew through the hand-tooled, hand-stitched, full-grain leather Hellhound Leather Co. wrap around my trigger guard and lever took patience and a steady hand. It’s the most traditional part of the build, and it looks like it would feel at home on an 1890s rifle despite sitting next to nearly $5,000 in ranging tech.

It all comes together nicely. Would I do it again? Absolutely. Would I recommend it to anyone? Also yes. Would I wrap my next lever action in leather and sinew? I don’t know. That part took quite a while and I don’t think I could speed it up much, either.

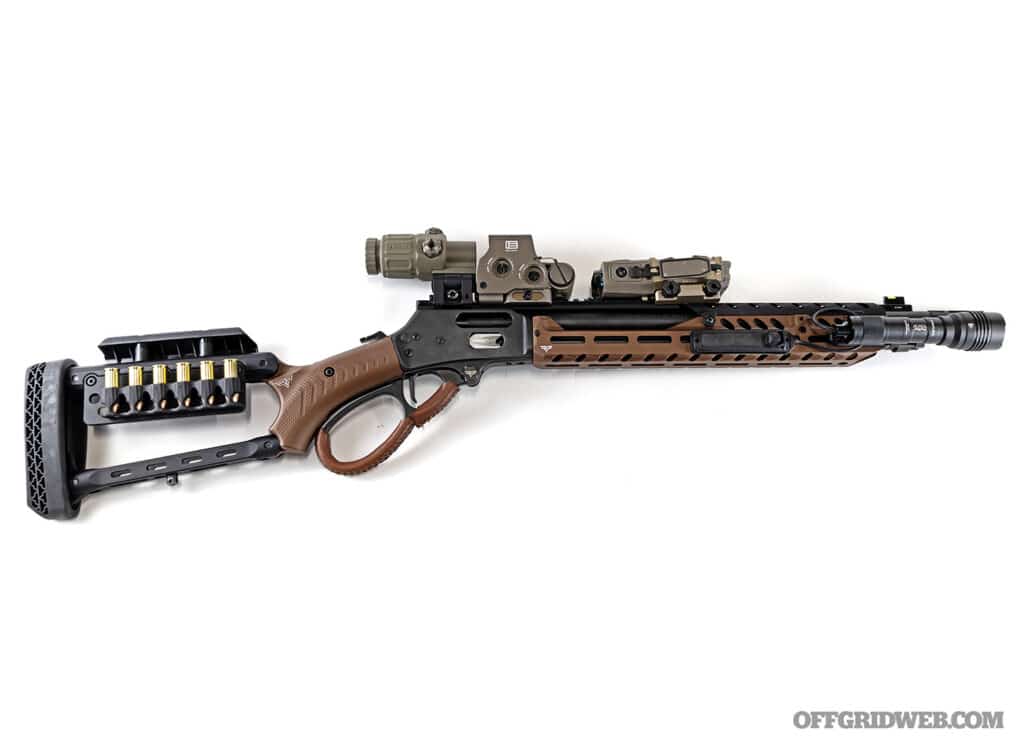

modernized Smith & Wesson1854
Fully upgraded and modernized Smith & Wesson 1854

On the Range

The action broke in quickly and smoothly, noticeably so after just a dozen shots, and just kept getting smoother from there. Recoil is mild, as the PewView’s flat comb and lighter-triggered Timney trigger means recovery is quick and easy, and follow-up shots are fast and easy to deliver. With the Q-Comp, muzzle rise is next to none, and follow-up shots are flat and fast. This is a stout cartridge, and I didn’t expect that kind of performance from a lever-action, but there it was, a mild-mannered, quick-shooting, almost-pistol-like shooting experience.

Accuracy-wise, the EOTech is faster and more forgiving than the factory dots, and with the magnifier flipped to the side I can shoot with both eyes open and get a nice crisp sight picture. Then, with the flip of a switch, the magnifier’s in place and I can get a nice look at my target (or lack thereof). The X4-LRF calculates atmospheric conditions and gives you your hold for you, which pretty much eliminates the guesswork. Now, admittedly, .44 Magnum isn’t exactly a long range cartridge out of this particular rifle, so windage doesn’t punish you quite so badly as it would on a dedicated LR rig, but if I had a LR scope on instead of the EoTech, the X4-LRF would be right at home.

Fun to play with, easy to work on, and more multi-tasking than you’d expect a lever to be.

Modernized Lever Action Rifle Build Sheet

  • Base Rifle Smith & Wesson 1854 Stealth Hunter, .44 Magnum $1,399
  • Optic EOTech HWS EXPS3 (Tan) $859
  • Magnifier EOTech G33, STS mount (Tan) $679
  • Laser Rangefinder Maztech Industries X4-LRF-15K $4,995
  • Muzzle Device Wilson Combat Q-Comp .458 $67
  • Weapon Light Streamlight ProTac Rail Mount HL-X $234
  • Trigger Timney Lever Action Trigger $200
  • Lever / Guard Wrap Hellhound Leather Co. Wrap Kit $35
  • Stock Set Ranger Point Precision PewView 13.25” (Root Beer) $630
  • Takedown Screw Ranger Point Precision Tool-less (Black) $29
  • Cartridge Quiver Ranger Point Precision M-LOK 6-Round .44 Mag $59
  • Accessory Panel Ranger Point Precision M-LOK Buttstock Panel $20
  • Loading Gate Ranger Point Precision Flyweight (Silver) $42
  • Total (approx.) $9,248
